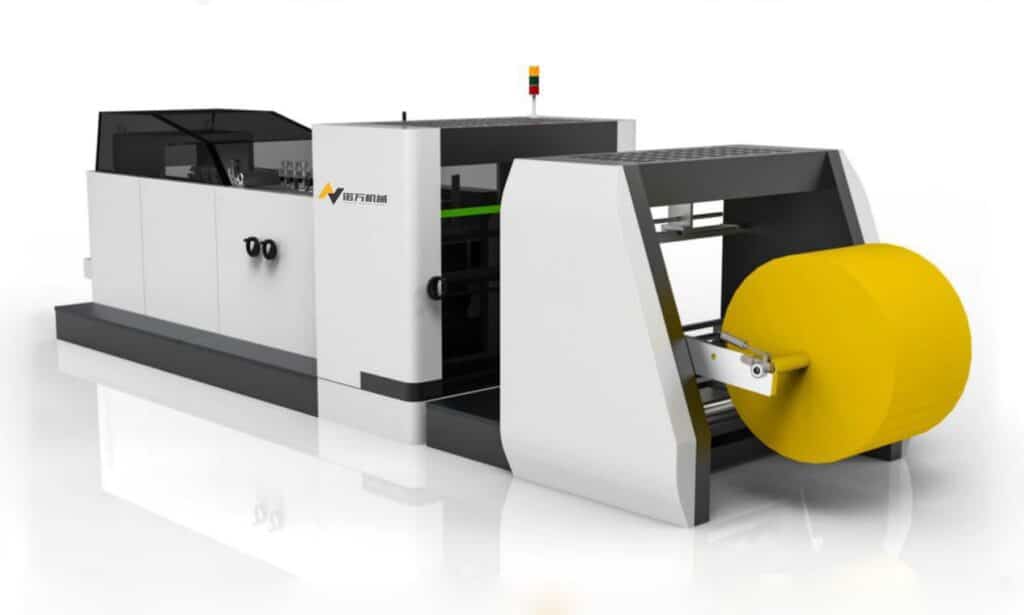

Fully Automatic Pointed Bottom Paper Bag Making Machine
This machine is suitable for many kinds of environmental protection paper roll such as Kraft paper, butter paper, food grade film coated paper, medical paper, etc. It is piercing, paper edge gluing, color standard length fixing (or fixed length), raw material forming, length fixing breaking, bottom folding, bottom gluing, forming and other processes in one line.
PRODUCT DETAILS
Multi-layer kraft paper bag machine The paper bag machine is equipped with advanced electrical systems and mechanical devices from the base material delivery, tube forming, gluing, cutting bags, and conveying stacked bags. The bag making process is advanced, the equipment structure is reasonable, and the bag is beautiful Reliable, it is an ideal equipment for various types of packaging bags produced by domestic and foreign bag manufacturers.
1. Device parameters
According to your needs, different specifications of bag making machines can be made
| Model | NW-350J |
| Paper bag length | 155-715mm |
| Paper bag width | 20-120mm |
| Paper bag bottom width | 50-105mm |
| Paper thickness | 50-130g/m² |
| Machine Speed | 30-260pcs/min |
| Paper bag speed | 30-200pcs/min |
| Paper roll width | 280-640mm |
| Roll paper diameter | 1300mm |
| Inner diameter of paper | 76mm |
| Machine power | 380V3(phase)4(wire) 11.5kw |
| Machine weight | 6500kg |
| Machine size | 7500x3000x2300mm |
2.Properties and uses
3.Main feature
This machine adopts motion controller and servo motor programming, which is easy to operate, efficient in production and stable in operation. It is for producing environmental protection paper bags of various specifications and sizes, such as sharp bottomed paper bags, bread bags with windows, leisure food bags, dry fruit bags, etc
4.Detail image
5.Certificate
6.About us
7.Packaging and delivery
