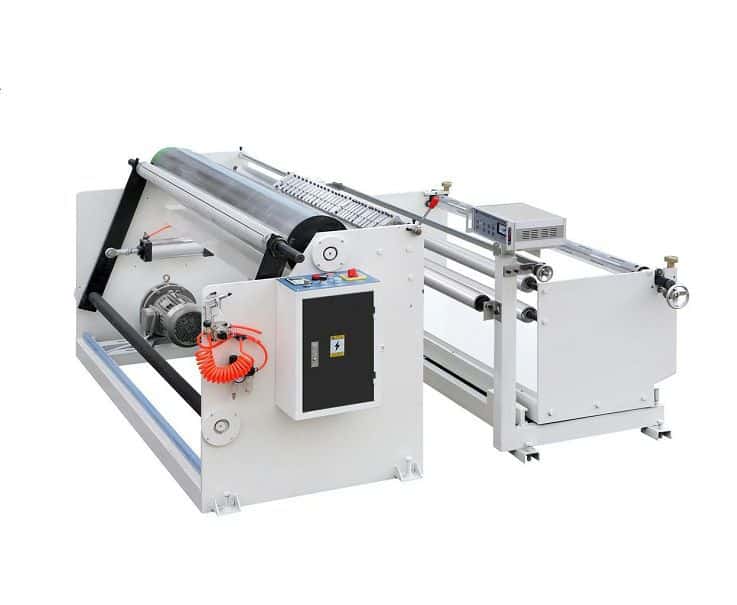

Non Woven Slitting Machine
Non Woven Slitting Machine This machine is mainly used for edge trimming or slitting of wide webs such as non-woven fabrics. It is used for slitting non-woven fabrics, mica tape, paper, insulating materials and films. It is especially suitable for narrow bands (non-woven fabrics, insulating materials, Mica tape, film, etc.) slitting.
PRODUCT DETAILS
Product description
Non Woven Slitting Machine This machine is mainly used for edge trimming or slitting of wide webs such as non-woven fabrics. It is used for slitting non-woven fabrics, mica tape, paper, insulating materials and films. It is especially suitable for narrow bands (non-woven fabrics, insulating materials, Mica tape, film, etc.) slitting.
1.Non Woven Slitting Machine parameters
| Type | NW-FH1600 |
|---|---|
| Slitting Width | 20-1600mm |
| Slitting Speed | 90-150m/min |
| Power Supply | 380V/220V 50Hz |
| Total power | 3KW |
| Overall Size | 2400x1600x950mm |
2.Machine characteristics
1. The thick steel plate is welded to make it firm and the angle is balanced, so that the machine is stable under high-speed working conditions;
2. The whole machine adopts chrome-plated steel pipes, each of which is dynamically balanced;
3. The unwinding adopts 3 inches inflatable unwinding shaft, the maximum unwinding diameter can reach 600mm
4. The rewinding adopts a 3-inch inflatable reel and a magnetic powder tension controller for rewinding, the slitting operation is simple, and the maximum rewinding diameter can reach 600mm; the rewinding is beautiful and neat;
5. The cutter can use industrial scalpel blade or flat knife (art blade) adjustable knife between 18mm-1600mm;
6. The spindle and the round knife use a continuously variable speed system, which can be used as a high-low speed control and forward and reverse switching control; electronic speed control system, convenient and simple;
7. Equipped with double-sided diamond grinding and sharpening system; the knife can be sharpened without disassembly, so that the blade can be kept sharp for a long time; to achieve the best cutting quality; and it is attached with a dust collector to keep the cloth and track clean;
8. Imported precision ball screw and slide rail are used to advance the cutting width in parallel, and the imported AC motor adjustment system steplessly adjusts and controls the cutting speed, so as to achieve high-precision cutting, and the accuracy can be controlled within 0.1 mm;
9. Equipped with a high-precision correction device system to further ensure the cutting accuracy;
11. Adopting the design of fast discharging, the loading and unloading can be completed in one action, which effectively reduces the amount of labor in production, thereby improving production efficiency.
11. Automatic counting device, clear at a glance
2. The whole machine adopts chrome-plated steel pipes, each of which is dynamically balanced;
3. The unwinding adopts 3 inches inflatable unwinding shaft, the maximum unwinding diameter can reach 600mm
4. The rewinding adopts a 3-inch inflatable reel and a magnetic powder tension controller for rewinding, the slitting operation is simple, and the maximum rewinding diameter can reach 600mm; the rewinding is beautiful and neat;
5. The cutter can use industrial scalpel blade or flat knife (art blade) adjustable knife between 18mm-1600mm;
6. The spindle and the round knife use a continuously variable speed system, which can be used as a high-low speed control and forward and reverse switching control; electronic speed control system, convenient and simple;
7. Equipped with double-sided diamond grinding and sharpening system; the knife can be sharpened without disassembly, so that the blade can be kept sharp for a long time; to achieve the best cutting quality; and it is attached with a dust collector to keep the cloth and track clean;
8. Imported precision ball screw and slide rail are used to advance the cutting width in parallel, and the imported AC motor adjustment system steplessly adjusts and controls the cutting speed, so as to achieve high-precision cutting, and the accuracy can be controlled within 0.1 mm;
9. Equipped with a high-precision correction device system to further ensure the cutting accuracy;
11. Adopting the design of fast discharging, the loading and unloading can be completed in one action, which effectively reduces the amount of labor in production, thereby improving production efficiency.
11. Automatic counting device, clear at a glance
3.About us and Certification
Nova Machinery Co., Ltd. has a group of senior and middle-level technical personnel engaged in the production of printing equipment, with high professional level and strong technical force. We have a reliable source of raw materials through strict screening; advanced manufacturing equipment; effective quality control throughout the entire process, through technology introduction and independent research and development, the output products are high in configuration and stable in performance. Nova’s existing products: flexographic printing machine, screen printing machine, offset printing. With complete varieties, good quality, stable machine performance, convenient operation and maintenance, and low investment, it is suitable for all large, medium and small printing and packaging enterprises. The products are not only sold throughout the country, but also exported to Southeast Asia, Africa, the Middle East, Brazil, Mongolia and other countries, and are deeply trusted by users at home and abroad. Relying on technological innovation and technological progress, the company actively researches and develops marketable products, and continuously produces better quality and more complete printing equipment for our customers to meet the diverse and personalized printing needs of customers.
4.Packaging and delivery
• Delivery time: about 45 working days after payment.
• Package: The packaging of the product transport process is the use of environmentally friendly wooden pallets, effectively avoid the international long-distance transport machinery collision.
• FOB: Ning bo Port
• Package: The packaging of the product transport process is the use of environmentally friendly wooden pallets, effectively avoid the international long-distance transport machinery collision.
• FOB: Ning bo Port
