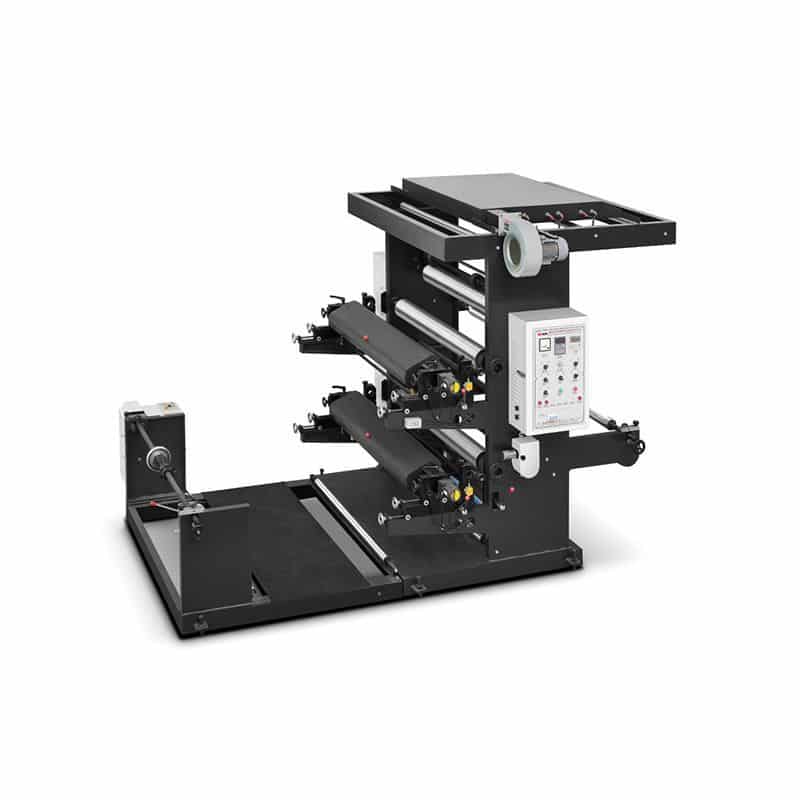

Two Color Flexo Printing Machine

Novan Co., Ltd. specializes in the production of non-woven printing machines, provides professional product introduction and a strong after-sales service team
PRODUCT DETAILS
1.What is a flexo printing machine
The flexo printing machine uses fluid ink with strong fluidity. The ink is transferred to the graphic part of the printing plate by the ink fountain roller and anilox roller, and then the ink is applied. Then the printing pressure is applied by the pressure cylinder to apply the printing plate The ink is transferred to the substrate, and finally the printing process is completed through the dried surface. Widely used on non-woven fabric, paper, plastic film
2.Video introduction
3. Device parameters
Model YT-21200
Machine Colors Two colour
Max. printing width 1160mm
Printing material PE plastic film,Roll paper,Non woven fabric and so on
Printing length 100-990mm
Printing speed 15-80m/min
Anilox roll Metal roller
Plate Thickness 2.28&3.94mm
2.38mm(paper,plastic film)
Register precision Longitude:±0.15mm horizontal:±0.15mm
Rewinder/winder DIA Unwind reel diameter: Φ1000mm
Rewind reel diameter: Φ1200mm
Rewind system Auto tension system control
Printing pressure Mechanical adjust
Drying way Electrical heat drying
Total power 10kw
Dimension(L×W×H) 5100*2300*2200mm
Weight 2000kg
Power Voltage 220V/380V/440V, 3 PH, 50/60 Hz
4. Main function and advantage

This machine is suitable for printing such packing materials a polyethylene,polypropylene plastic bag,cellophane and roll paper,etc.

1.Easy operation,flexible starting,accurate colour register.

2.The meter counter can set printing quantity as required.Stop the machine automatically at the

set quantity or when the material is cut off.

3.Lift and lower the printing plate cylinder manually,it will automatically stir the printing ink after lifting.

4. The printing inks is transmitted by the cobweb barrel with even ink colour.

5.Reliable drying system coordinated with high-speed rotation will automatically break circuit

when the machine stops.

6.360 continuous and adjustable longitudinal register device.

7.machine speed adjust by the high quality invertor,stable and high efficiency

8.There are “Run”&”Stop” buttons on the plate roller base and material drawing-in rack so as to

make it easy for operate the machine when the plate is installed

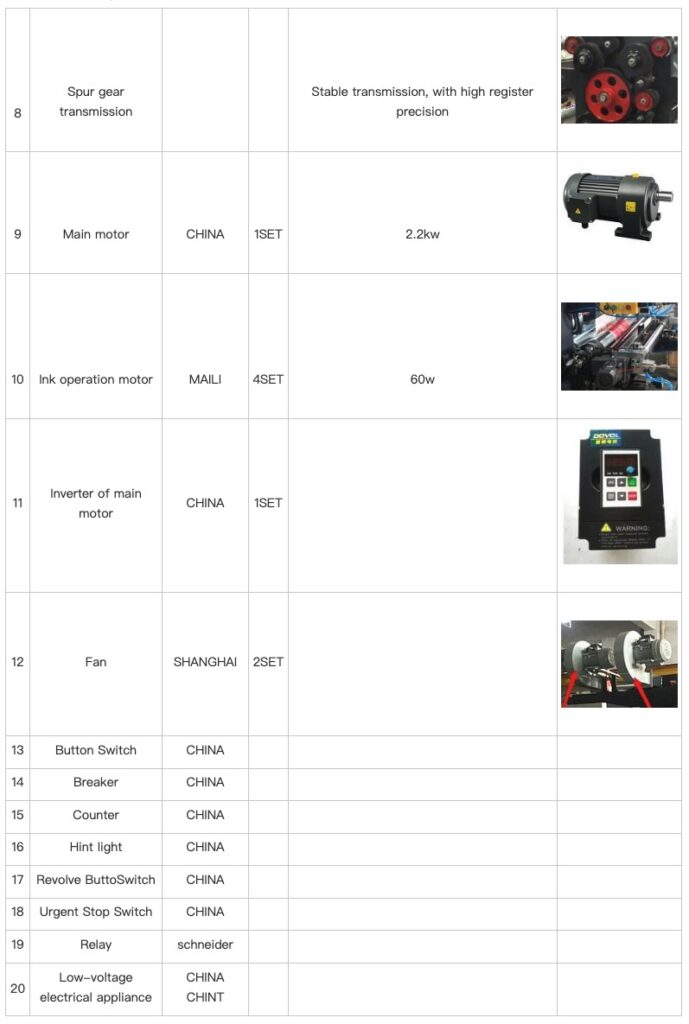

5.Device Description

6.About us and Certification

Nova Machinery Co., Ltd. has a group of senior and middle-level technical personnel engaged in the production of printing equipment, with high professional level and strong technical force. We have a reliable source of raw materials through strict screening; advanced manufacturing equipment; effective quality control throughout the entire process, through technology introduction and independent research and development, the output products are high in configuration and stable in performance. Nova’s existing products: flexographic printing machine, screen printing machine, offset printing. With complete varieties, good quality, stable machine performance, convenient operation and maintenance, and low investment, it is suitable for all large, medium and small printing and packaging enterprises. The products are not only sold throughout the country, but also exported to Southeast Asia, Africa, the Middle East, Brazil, Mongolia and other countries, and are deeply trusted by users at home and abroad. Relying on technological innovation and technological progress, the company actively researches and develops marketable products, and continuously produces better quality and more complete printing equipment for our customers to meet the diverse and personalized printing needs of customers.

7.Packaging and delivery

• Delivery time: about 45 working days after payment.
• Package: The packaging of the product transport process is the use of environmentally friendly wooden pallets, effectively avoid the international long-distance transport machinery collision.
